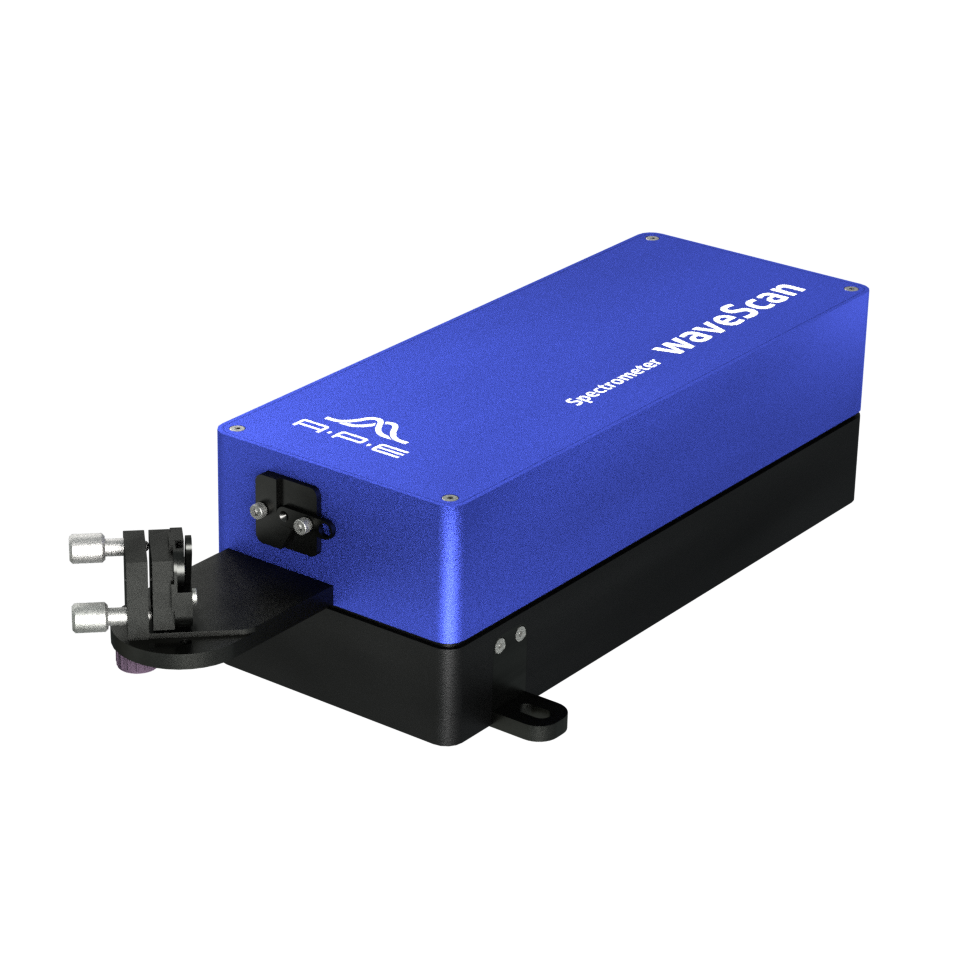

waveScan spectrometer by APE is a compact and cost-efficient optical spectrometer to characterize light sources, e.g. ultrafast as well as cw laser systems. The rotating grating technology achieves high resolution at fair scan rates. This makes waveScan an ideal real-time alignment tool for laser systems.

Different configurations, from 200 nm UV to 6.3 µm in the mid-infrared range, make waveScan the choice for analyzing the spectrum of different laser types.

waveScan is available with an interchangeable fiber input in addition to a free-space input. Whether you need fast scan rates for adjustment or high resolution, combined with convenient measurement control and data processing – waveScan is the ideal solution.

waveScan Spectrometer is easy to use and supports plug and play via USB connection. The software is included and provides a bunch of featues. For example, waveScan  automatically searches for one or two peaks in the  measured spectrum and displays the peak wavelength, centroid wavelength, and full width at half maximum (FWHM) of the peaks. In the “set peak search window” of the spectrometer software the user can set the wavelength windows in that the peaks are searched for. The user can lock these search
windows to the selected “Wavelength window”, or can set minimum
and maximum wavelength for each search window separately.

waveScan closes the gap between low-cost spectrometer offering low-resolution and more expensive high-end equipment. The waveScan principle is based on a rotating grating, driven by a small and precise motor. Therefore it has substantial advantages over conventional types of spectrometers (e.g. beam splitter) which are usually complex, large in size and
